Interclamp Combination Socket (Code 165)

Combined T / Tee and crossover fitting. Commonly employed in racking and similar structures, this fitting enables continuous uprights and front and rear horizontal rails.

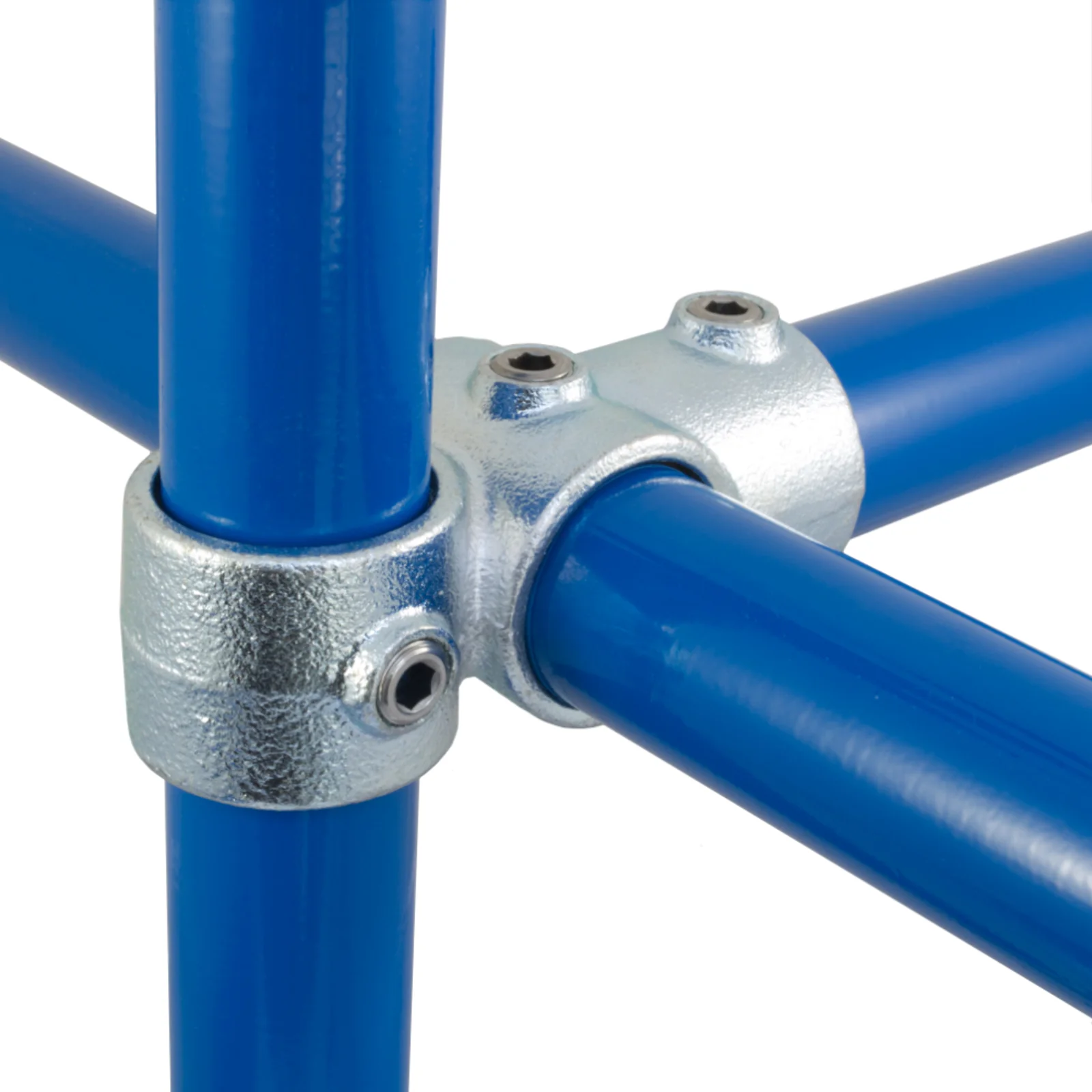

Optimal stability is achieved by placing the upright on the outside of the structure, as shown in the image. The through tubes cannot be joined within this fitting.

Qty: 1
Finish: Galvanised
Brand: Interclamp®
Interclamp code: 165

Sizes:
• B34 | For 34mm Galvanised Pipe | 'a' 46mm | 'b' 40mm | Weight: 0.48kg
• C42 | For 42mm Galvanised Pipe | 'a' 60mm | 'b' 49mm | Weight: 0.69kg
• D48 | For 48mm Galvanised Pipe | 'a' 68mm | 'b' 55mm | Weight: 0.86kg
• E60 | For 60mm Galvanised Pipe | 'a' 84mm | 'b' 68mm | Weight: 1.33kg

'a and 'b'- refer to diagram
